10 Best Arbitrary Waveform Generator of 2025

Main Highlights

•

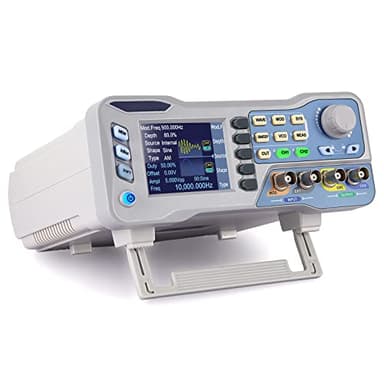

  [Arbitray Waveform Generator] adopts large scale FPGA integrated circuit and high speed MCU microprocessor. The internal circuit adopts active crystal oscillator as benchmark. So the signal stability is greatly strengthened.
•
  [The Signal Generator Counter] can be connected to the mobile phone for control and operation, which is very convenient. After downloading the APP, you can view the relevant data on the mobile phone, and you can set all functions through the mobile APP, and support the import and export of arbitrary waveform data, which is convenient and fast.
•
  [Using Dual-channel DDS signal and TTL electric level output to generate precise] stable, low distortion output signal. includes Sine wave, Square wave, Triangle wave, Saw tooth wave, Pulse wave, white noise, user-defined waveform etc. each channel can be independently set the parameters.
•
  [Function Generators] With linear sweep(Max. up to 999.9s) and logarithmic frequency sweep functions.Has a frequency measurement, period measurement, positive and negative pulse width measurement and counting function.
•
  [Can Draw Arbitrary Waveform]PC software and communication protocol are provided for free, arbitrary waveforms can be drawn using the PC software; using the communication protocol can be secondary development programming; all functions of the instrument can be controlled by the PC software (The instrument can be also finished all operations without connecting to the computer.)
•
  Storage feature: You can store 100 groups instrument state parameters set by the user, can be called up to Reproduce. Frequency output of Sine wave can be up to 80MHz. 275MSa/s sampling rate. Waveform Length of each one is 8192 and vertical resolution is 14 bits
•
  [This Signal Generator] is the ideal instrument for electronic engineering, laboratories, production lines, teaching and scientific research.

Main Highlights

•

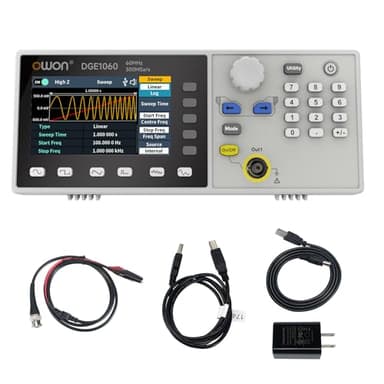

  Waveform Generator: With 60MHz bandwidth, real-time sampling rate 300MSa/s, record depth 8K, 14 bits Vertical Resolution,waveform length 2-8k points
•
  Comprehensive Waveform Output: In addition to the standard 5 basic waveforms, this generator also includes 160 built-in arbitrary waveform like exponential rise, exponential fall, sin(x)/x, step wave, and others. You can easily find the waveform that suit your needs.
•
  User-Friendly Interface: Benefit from a 3.6-inch TFT LCD display and an intuitive function setting area, ensuring clear and effortless waveform observation.
•
  Easy Operation: Features AM, FM, PM, and FSK modulation modes, sweep and Burst functions, and storage for 16 digital arbitrary waveforms. Also compatible with PC remote control.
•
  Ultra-thin Design: This portable multimeter boasts an ultra-thin body for effortless handling. Equipped with convenient shortcut keys, it enhances man-machine interaction, effectively boosting work efficiency.

Main Highlights

•

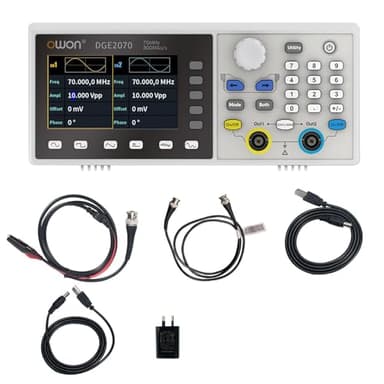

  70MHz Dual Channel Arbitrary Waveform GeneratorGenerate precise signals with dual-channel output, 70MHz frequency range, and 300MSa/s sample rate, perfect for lab and engineering applications.
•
  High-Resolution 3.6 LCD DisplayEnjoy crystal-clear waveform visualization, intuitive menu navigation, and real-time status monitoring, making waveform editing more convenient.
•
  150 Built-in Arbitrary WaveformsChoose from 5 standard waveforms (Sine, Square, Pulse, Ramp, Noise) and 150 built-in waveforms to meet diverse testing needs.
•
  Supports AM/FM/PM/FSK Modulation & PC ControlEquipped with multiple modulation modes, sweep/burst functions, and remote control via PC software, perfect for advanced experiments.
•
  Ultra-Thin & Portable DesignLightweight compact body, quick-access shortcut keys, and easy operation, ideal for on-the-go engineers, students, and lab professionals.

Main Highlights

•

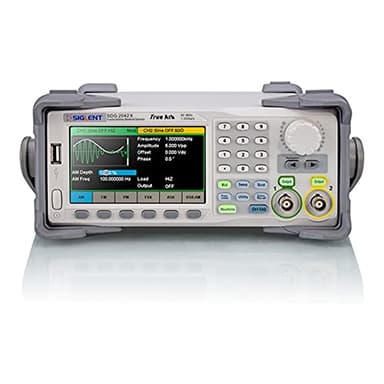

  Dual channel * 40 MHz (Sine wave) * Touch screen display
•
  16 bit vertical resolution * Modulation / Sweep / Burst
•
  TrueArb Technology / Easy Pulse Technology
•
  Built-in high precision Frequency Counter
•
  USB / LAN interfaces. Optional GPIB adapter available

Main Highlights

Main Highlights

•

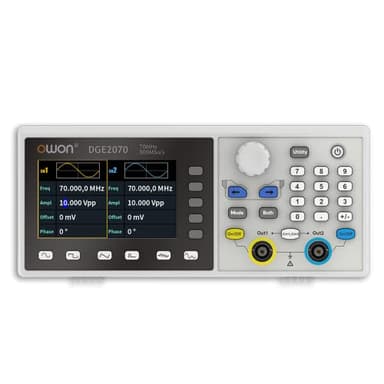

  ParameterDual channel waveform generator, 70MHz frequency output; Max 300MSa/s Sample rateVertical resolution 1Hz; 14 bits Vertical Resolution, 8K Arb waveform length
•
  Function: Comprehensive waveform output: 5 basic waveforms and 150 built-in arbitrary waveforms; Comprehensive modulation functions: AM, FM, PM, FSK, Sweep and Burst
•
  Utility function: Setting brightness of the screen; Screen Saver(If there is no operation within the set screen saver time, the screen enters the protection mode );Setting data separator; Setting load; Setting language; Beeper; USB Device Type
•
  DGE2070 adopt 3.6 inch TFT color LCD display, each channel output waveform status and menu settings can be fully displayed on the screen. With convenient shortcut key, it makes man-machine interaction more convenientand effectively improve working efficiency

Main Highlights

•

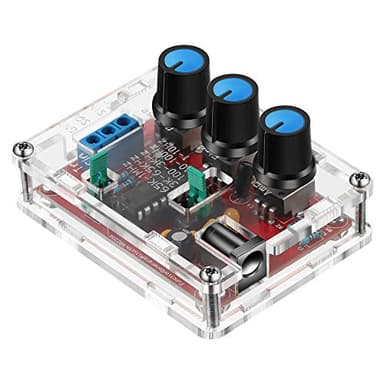

  Good Precision: the XR2206 function signal generator is precise, with a transparent case box shell for good assemble; Amplitude: 0-3V at 9V DC input; Distortion: less than 1% (at 1KHz); Flatness: +0.05dB 1Hz - 100kHz; Note:this set requires soldering tools; Please consult customer service for a detailed installation video
•
  Parameters: Voltage Supply: 9-12V DC Input; Waveforms: Square, Sine, Triangle; Impedance: 600 Ohm + 10%; Frequency: 1Hz-1MHz; Amplitude: 0-3V at 9V DC; InputDistortion: less than 1% (at 1KHz); Flatness: +0.05dB 1Hz - 100kaHz
•
  Sine wave parameters:Amplitude: 0-3V at 9V DC input; Distortion: less than 1% (at 1KHz); Flatness: +0.05dB 1Hz - 100kHz
•
  Square wave parameters: Amplitude: 8V (no load) at 9V DC Input; Rise Time: less than 50ns (at 1KHz); Fall Time: less than 30ns (at 1KHz); Symmetry: less than 5% (at 1KHz)
•
  Triangle wave: Amplitude: 0-3V at 9V DC input; Linearity: less than 1% (up to 100 KHz) 10 mA

Main Highlights

•
  High Precision & Dual Channels35MHz frequency output, 125MSa/s sampling rate, 14-bit resolution for precise and stable signal generation. Supports dual-channel output with up to 8K arbitrary waveform length.
•
  Multiple Standard & Arbitrary WaveformsIncludes 5 standard waveforms (Sine, Square, Pulse, Ramp, Noise) and 150 built-in arbitrary waveforms, making it ideal for lab testing, research, and education.
•
  Clear 3.6" LCD Display & User-Friendly DesignThe TFT color screen displays real-time waveform status and menu settings. With shortcut keys and an ultra-thin design, its easy to operate and highly portable.
•
  Advanced Modulation & Sweep FunctionsSupports AM, FM, PM, FSK modulation, sweep mode, burst function, and 16 non-volatile digital waveform storage for advanced testing applications.
•
  PC Control & Versatile ApplicationsSupports remote control via USB, making it perfect for electronics engineers, research labs, educational training, and industrial testing. Compact and lightweight for easy transport.

Main Highlights

•

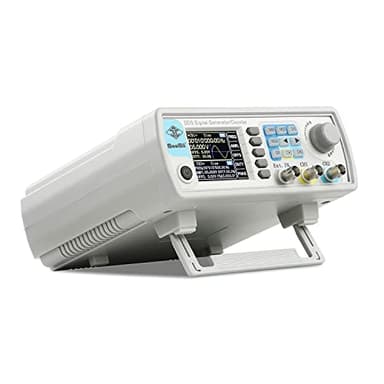

  Upgraded Signal StabilitySeesii Dual-channel DDS arbitrary waveform generator adopts large-scale FPGA integrated circuit and high-speed MCU microprocessor. The internal circuit adopts an active crystal oscillator as a benchmark. So the signal stability is greatly strengthened
•
  Storage And Custom You can store 99 groups of instrument state parameters set by the user, which can be called up to Reproduce. The frequency output of a Sine wave can be up to 15MHz. 200MSa/s sampling rate. It has 60 positions for saving user-defined waveforms. In addition, it has a very good software package that allows you to create your waves and frequency combinations. After you save them, you can disconnect the unit from the computer and use them for any applications you wish
•
  High Precise Using Dual-channel DDS signal and TTL electric level output to generate a precise, stable, low distortion output signal. Includes Sine wave, Square wave, Triangle wave, Sawtooth wave, Pulse wave, white noise, user-defined waveform, etc. Each channel can be independently set the parameters. The duty cycle of each channel can be adjusted separately. Precision can be 0.1%
•
  Frequency MeterWith linear sweep(Max. up to 999.9s) and logarithmic frequency sweep functions.Has a frequency measurement, period measurement, positive and negative pulse width measurement, and counting function. The settings allow you to enter up to 20volts
•
  Lightweight Compact and PortableWith an intuitive control panel, you can easy to control. This Signal Generator is the ideal instrument for electronic engineering, laboratories, production lines, teaching, and scientific research. This is an important tool for both experts and newcomers

Main Highlights

•

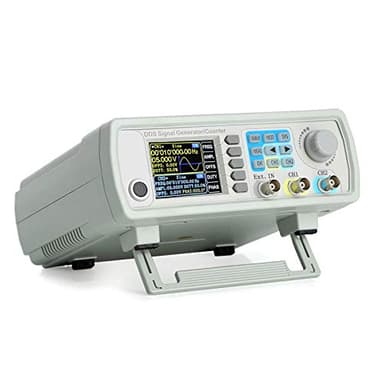

  Arbitrary Waveform Generator adopts large scale FPGA integrated circuit and high speed MCU microprocessor. The internal circuit adopts active crystal oscillator as benchmark. So the signal stability is greatly strengthened.
•
  Using Dual-channel DDS signal and TTL electric level output to generate precise, stable, low distortion output signal. includes Sine wave, Square wave, Triangle wave, Sawtooth wave, Pulse wave, white noise, user-defined waveform etc. each channel can be independently set the parameters.
•
  With linear sweep(Max. up to 999.9s) and logarithmic frequency sweep functions.Has a frequency measurement, period measurement, positive and negative pulse width measurement and counting function.
•
  Storage feature: You can store 99 groups instrument state parameters set by the user, can be called up to Reproduce. Frequency output of Sine wave can be up to 30MHz. 200MSa/s sampling rate. It has 60 positions for saving user-defined waveform. Waveform Length of each one is 2048 and vertical resolution is 14 bits
•
  This Signal Generator is the ideal instrument for electronic engineering, laboratories, production lines, teaching and scientific research.
